Part Location Diagram of WPW10614158 Whirlpool Evaporator Drip Tray
See part 25 in the diagram
Replacing your Whirlpool Refrigerator Evaporator Drip Tray
( Grid squares measure 1x1 inch )

Evaporator Drip Tray WPW10614158

★★★★★
★★★★★
2 Reviews

Rated by 2 customers

?

Really Easy

Less than 15 mins

Ratings submitted by customers like you who bought this part.

?
$76.96
In Stock
Fix Number:
FIX11756735
Manufacturer #:
WPW10614158
Manufactured by:
Whirlpool

Product Description

This is the replacement evaporator drip tray for your refrigerator. It is made of white plastic and is approximately 19 inches by 9 inches. The evaporator drip tray sits below the evaporator to collect dripping water. If the drip tray is damaged, you may notice that your refrigerator is leaking. Because it is made of plastic, the drip tray can eventually develop a crack. You will need to pull out the refrigerator from the wall, and take off the bottom panel on the back of your refrigerator in order to access the drip tray for replacement. This is an OEM part sourced directly from the manufacturer.

Videos For installing this part.

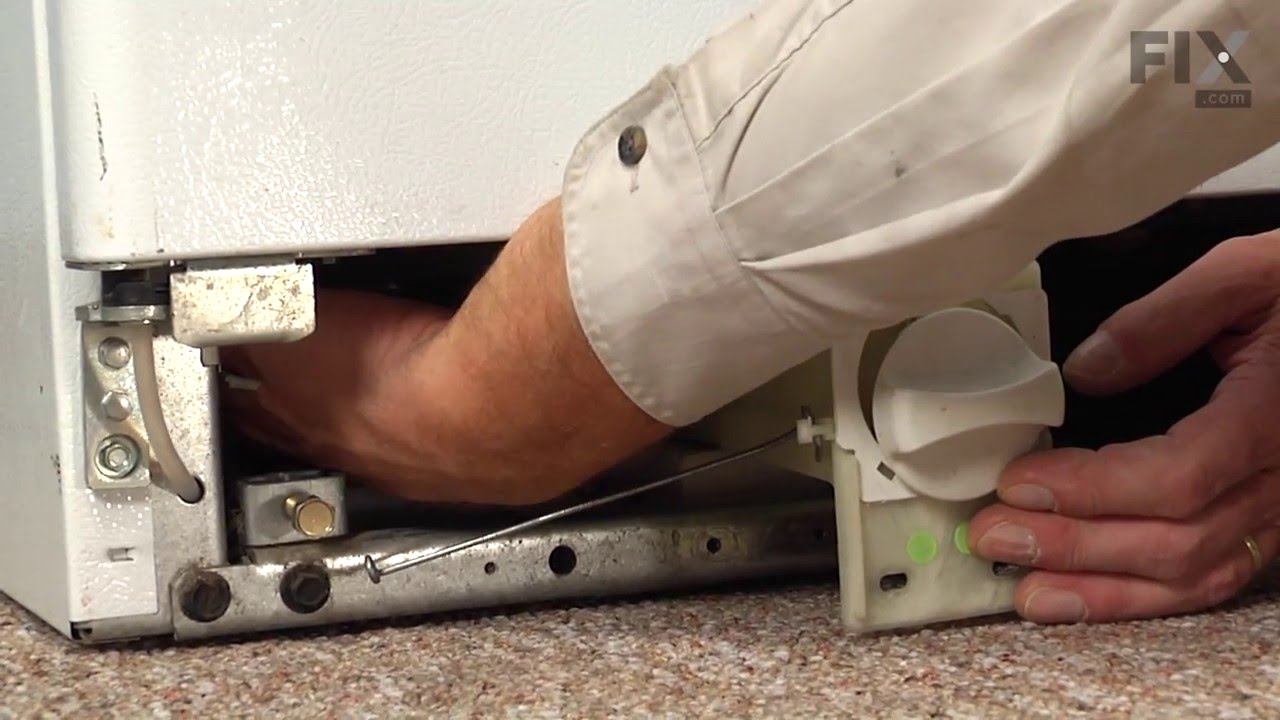

Replacing your Evaporator Drip Tray

Replacing your Evaporator Drip Tray

Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
