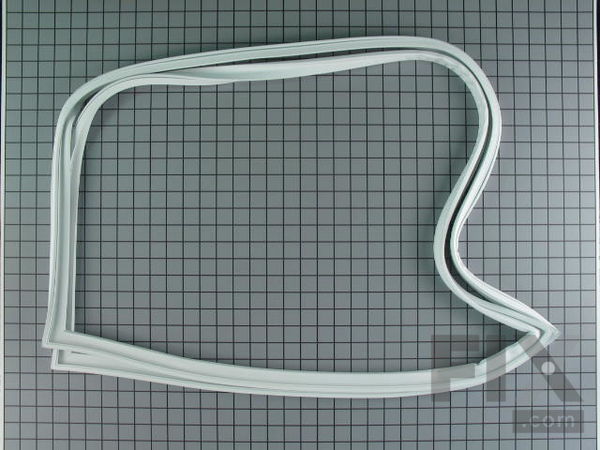

Part Location Diagram of 5304507200 Frigidaire Refrigerator Door Gasket
See part 1 in the diagram

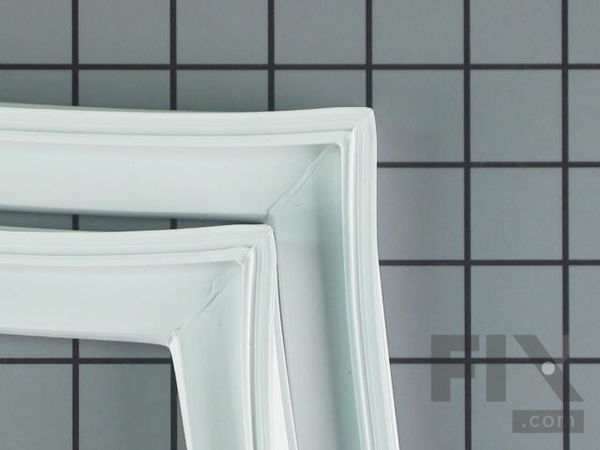

( Grid squares measure 1x1 inch )

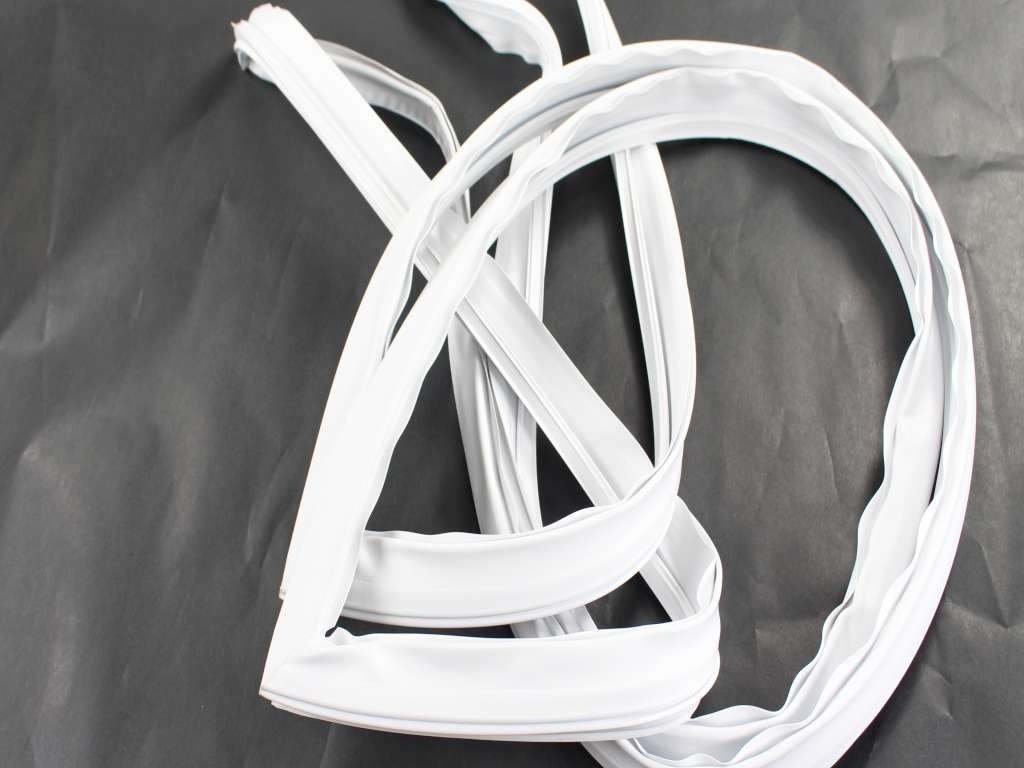

Refrigerator Door Gasket 5304507200

Rated by 2 customers

?

Easy

1- 2 hours

Ratings submitted by customers like you who bought this part.

?
$143.22
In Stock
Fix Number:
FIX11770644
Manufacturer #:
5304507200
Manufactured by:
Frigidaire

Product Description

Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Affresh Washing Machine Cleaner - 3 pack
$12.58
In Stock
Produce Preserver Filter
$21.50
In Stock
Affresh Dishwasher Cleaner Tablets - 6
$19.09
In Stock
Cooktop Cleaning Cream
$15.57
In Stock
Cooktop Cleaner
$17.74
In Stock
Affresh Cleaner
$19.09
In Stock

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 3.0 / 5.0, 2 reviews.
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.
Customer:
james from EVANS, WV
Parts Used:
5304507200
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers
The top half of the freezer was not cooling. Frost was accumulating along top shelf
(New gasket was placed in bathtub of warm water, prior to installation)
Step 1: Unplugged unit.
Step 2: Removed old gasket, from the top first, down halfway of the door.
Step 3: Installed new gasket, from top to bottom.
2 of 2 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Adrienne from Chapel Hill, NC
Parts Used:
5304507200
Difficulty Level:
Really Easy
Total Repair Time:
1- 2 hours
Tools:
Nutdriver, Pliers, Screw drivers
The refrigerator door was not holding closed.
First, take the new gasket and lay it outside in the sun to make it more pliable. Unplug the fridge. Get all the stuff out of the fridge door. Take the hinge cap off of the top left of the appliance. No tools necessary, it just clicks on and off. Use a nut driver to remove the 2 nuts. Keep those safe. Balance the door so it stays on the lower hinge while you remove the metal plate (should be about the same size/shape as the hinge cover). Carefully remove the door and set on an open space (I used a cleared-off kitchen island), the inside part upward. Use a pair of cutting pliers to make one complete cut in the old gasket, so you can grab onto one end and then pull the old gasket out, going around the door. This is a good time to clean up some nasty gunk buildup. Take a putty knife and, only inserting up to 3/4 inch of the blade, push under the main frame all the way around to push back any internal insulation that may have been pulled out when the old gasket was removed. Next, take a screwdriver (I used a magnetic phillips) to loosen all of the screws holding the main frame down. To keep better track of the screws, don't remove them. Just unscrew enough for there to be a lot of wiggle room. Grab the gasket from outside. It should now be softer. Get the gasket lip under one corner. Then do the opposite corner, then the two other corners, and then the rest of the sides. Now, hold the lip as close under the frame as possible as you screw the screws back in. If there's a tight spot and it is hard to get the lip in, pry the space open with the putty knife. Balance the door back on the bottom hinge as you get the top hinge section in place. Place the plate, drive the nuts, and put the cover back on. Plug the fridge in again, and you should get an excellent seal.
1 of 2 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1

Model Compatibility

This part works with the following models:
Fix Number: FIX11770644
Manufacturer Part Number: 5304507200
Brand
Model Number
Description
Kenmore
25321711100
Freezer
Kenmore
25321711101
Freezer
Kenmore
25321711102
Freezer
Kenmore
25321711103
Freezer
Kenmore
25321711104
Freezer
Kenmore
25321721100
Freezer
Kenmore
25321721101
Freezer
Kenmore
25321721102
Freezer
Kenmore
25321721103
Freezer
Kenmore
25321741100
Freezer
Kenmore
25321741101
Freezer
Kenmore
25321741102
Freezer
Kenmore
25321741103
Freezer
Kenmore
25321741104
Freezer
Kenmore
25321741105
Freezer
Kenmore
25321741106
Freezer
Kenmore
25323714100
Freezer
Kenmore
25323714101
Freezer
Kenmore
25323724100
Freezer
Kenmore
25323724101
Freezer
Kenmore
25323725100
Freezer
Kenmore
25323725101
Freezer
Kenmore
25324722100
Freezer
Kenmore
25324722101
Freezer
Kenmore
25324722102
Freezer
Kenmore
25324722103
Freezer
Kenmore
25324722104
Freezer
Kenmore
25324752100
Freezer
Kenmore
25324752101
Freezer
Kenmore
25324752102
Freezer
