Part Location Diagram of WP302711 Whirlpool Pump Outlet Seal
See part 13 in the diagram
Replacing your Kenmore Dishwasher Pump Outlet Seal
( Grid squares measure 1x1 inch )

Pump Outlet Seal WP302711

Rated by 2 customers

?

Really Easy

15 - 30 mins

Ratings submitted by customers like you who bought this part.

?
$28.37
In Stock
Fix Number:
FIX11740642
Manufacturer #:
WP302711
Manufactured by:
Whirlpool

Product Description

This part is the replacement pump outlet seal or seal ring for your dishwasher. It is made of black rubber and is sold individually. The seal ring creates a seal between the upper compartment of the pump to the pump body. If the seal ring fails, you won’t have good water pressure, and therefore your dishes won’t come clean properly. Improperly cleaned dishes are a good indicator of a bad seal ring. Be sure to disconnect your dishwasher to the water and power sources before you begin this repair. This is an OEM part sourced directly from the manufacturer.

Videos For installing this part.

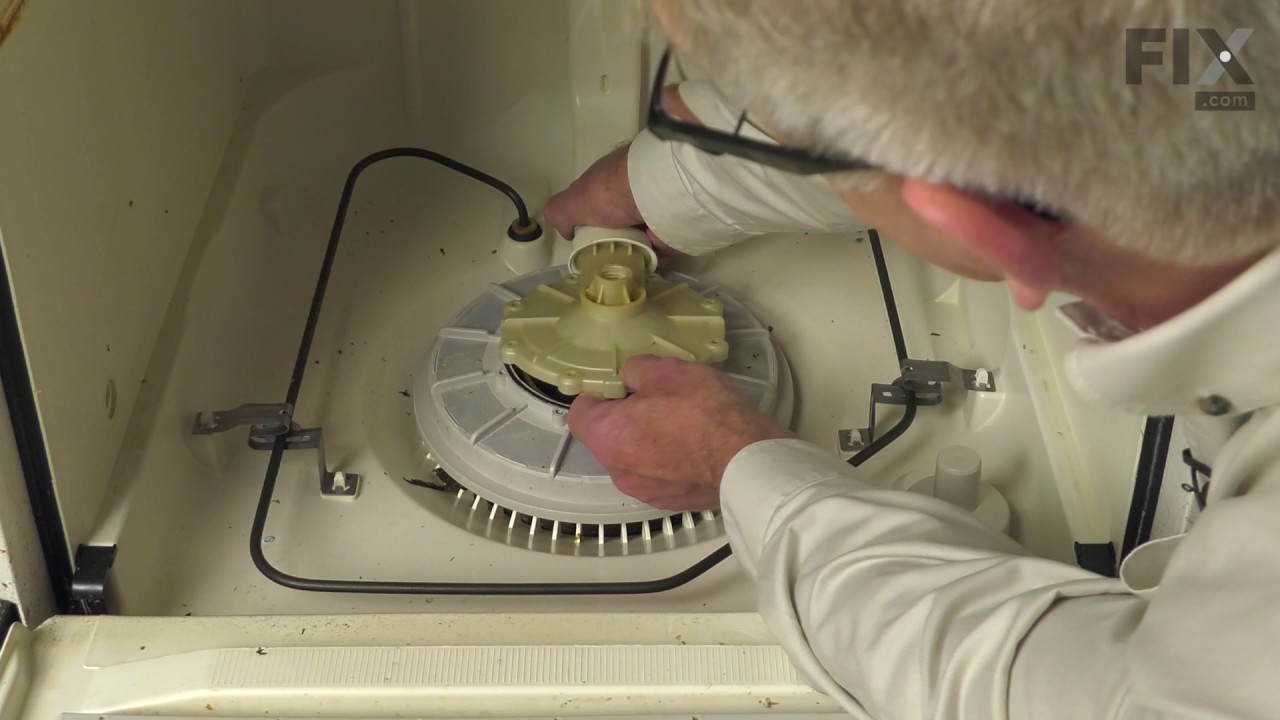

Replacing your Pump Outlet Seal

Replacing your Pump Outlet Seal

Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

View More View Less
Lower Sprayarm Seal
$15.96
In Stock
Wash Arm Bearing Ring
$32.75
In Stock
Screw - 8-18 x 5/8
$7.95
In Stock
Affresh Washing Machine Cleaner - 3 pack
$12.58
In Stock
Produce Preserver Filter
$21.50
In Stock
Affresh Dishwasher Cleaner Tablets - 6
$19.09
In Stock
Cooktop Cleaning Cream
$15.57
In Stock
Cooktop Cleaner
$17.74
In Stock
Affresh Cleaner
$19.09
In Stock

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 4.3 / 5.0, 2 reviews.
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.
Customer:
Richard from Southgate, MI
Parts Used:
WP302711
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
water was pouring out the door on bottom
This was a easy fix.take out the bottom rack.unscrew the spray head & plastic bushing.You will see your problem right away.The black rubber seal will be hanging out of the pump housing.The screws will be loose.If you are missing one take a flashlight and look under the strainer.Unscrew the rest of the screws.and remove the pump housing.On one end you will see a outlet with a o ring on it.Just give the top a tug.Pull out the old seal.look to see if any debris is in the seal groove.Put in the new seal.push the pump housing into the outlet.Put your screws in.tighten in a cross pattern once you have them down.Go around and make sure there tight.put the sprayer and basket in.And test.retighten all screws abour once a month.
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Gerald from MOUNT PLEASANT, TX
Parts Used:
WP302711
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers
Leaking from the bottom of the door
Remove bottom spray arm by loosening the wing nut on top until spray arm assembly comes off, remove all the screws holding the pump top,then move it to the side and then remove the seal that sits between the two halves of the pump. Install the new seal and then carefully put the top half of the pump back on and put all the screws back in and then the spray arm assembly with the wing nut. Put bottom tray back in and test.
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1

Model Compatibility

This part works with the following models:
Fix Number: FIX11740642
Manufacturer Part Number: WP302711
