How to Fix the Bulb Socket for a Dryer That Has A Burned Out or Damaged Light Bulb

The bulb socket is responsible for holding the light bulb and providing it with electrical connections. Over time, the socket can become damaged or corroded, leading to issues with the light. If the metal contacts inside the socket become dirty or corroded, they may no longer make proper contact with the bulb’s contacts, preventing the flow of electricity. Physical damage to the socket can also cause the bulb to flicker or go out altogether.

If you suspect that the bulb socket is the source of your dryer light problems, you may be able to clean the contacts inside the socket to restore proper function. However, if the socket is physically damaged or cannot be repaired, you will need to replace it. Don’t continue using your dryer if the bulb socket is damaged, as this can cause the bulb to become loose and potentially damage other components of the dryer, resulting in more costly repairs.

What is a Bulb Socket?

The bulb socket is the part of the dryer that holds the light bulb in place. It also provides power to the light bulb when the door is open. The socket is typically made of plastic or metal and has two or more metal contacts that come into contact with the bulb’s electrical contacts to complete the circuit and power the bulb. Depending on the model of your dryer, the bulb socket may have a removable cover on it, or it may be exposed.

Where is the Bulb Socket Located?

In most cases, the bulb socket is located inside the dryer drum, on the back wall of the drum.

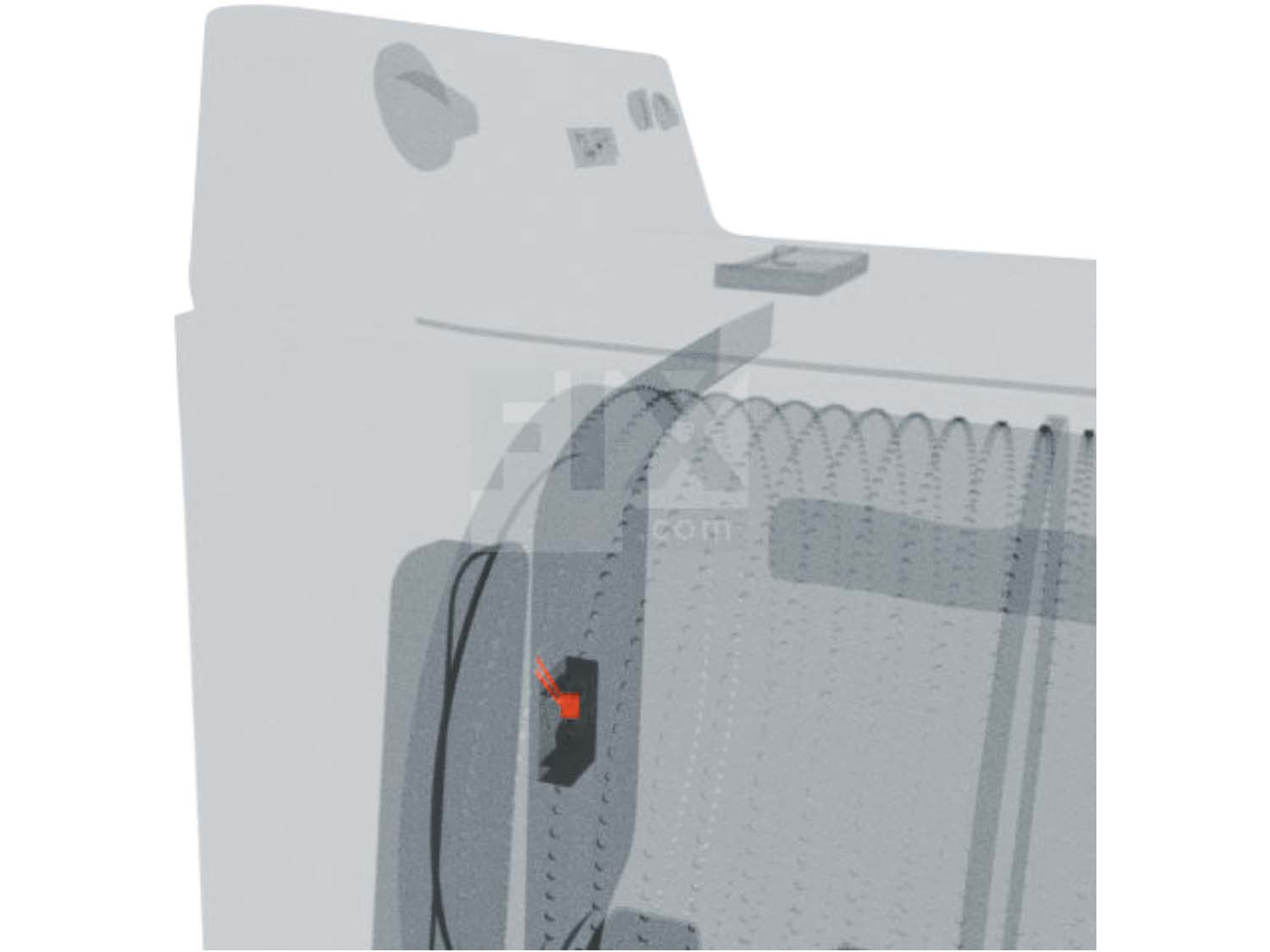

General Location of the Bulb Socket in a Dryer

How to Access, Remove, and Inspect the Bulb Socket in a Dryer

1. Unplug the dryer from the electrical outlet for your safety.
2. Depending on your model of dryer, you may be able to access the bulb socket from inside the drum or you may need to remove the back panel of the dryer to access the bulb socket.
3. Once you have access to the bulb socket, remove the cover if it has one.
4. Look for any clips or screws that are securing the socket in place and use a screwdriver or pliers to remove them.
5. Carefully pull the socket out and disconnect the wires attached to it.
6. Unscrew the light bulb from the socket and set it aside.
7. Inspect the socket for signs of dirt or corrosion. If any is present, you will need to replace the socket; if not, you will need to test it for continuity.

How to Test a Bulb Socket

1. Touch the probes of the multimeter to the metal contacts inside the socket. The metal contacts are usually located at the bottom of the socket and are visible when you look inside.
2. If there are no electrical issues, the multimeter should make an audible sound or show a low resistance reading or continuity. This indicates that the electrical circuit is complete and that the socket is able to conduct electricity.
3. If the multimeter shows a high resistance reading or no continuity, or there is no audible sound, it means there is a problem with the socket. This could be due to a faulty switch or a problem with the wiring. In this case, you may need to inspect the socket and wiring for any visible damage or contact an electrician to further diagnose and repair the issue.

How to Install a New Bulb Socket

1. Discard the faulty socket and reattach the wires to the new socket using wire connectors. Check your dryer’s user manual for the correct wiring diagram, and make sure to connect the wires correctly to avoid electrical issues.
2. Carefully place the new socket on to the rear end of the dryer and make sure it is securely in position.
3. Take the light bulb and screw it back into the socket.
4. If the socket had a cover, replace the cover and secure it in position.
5. Plug the dryer back in and your repair is complete!
